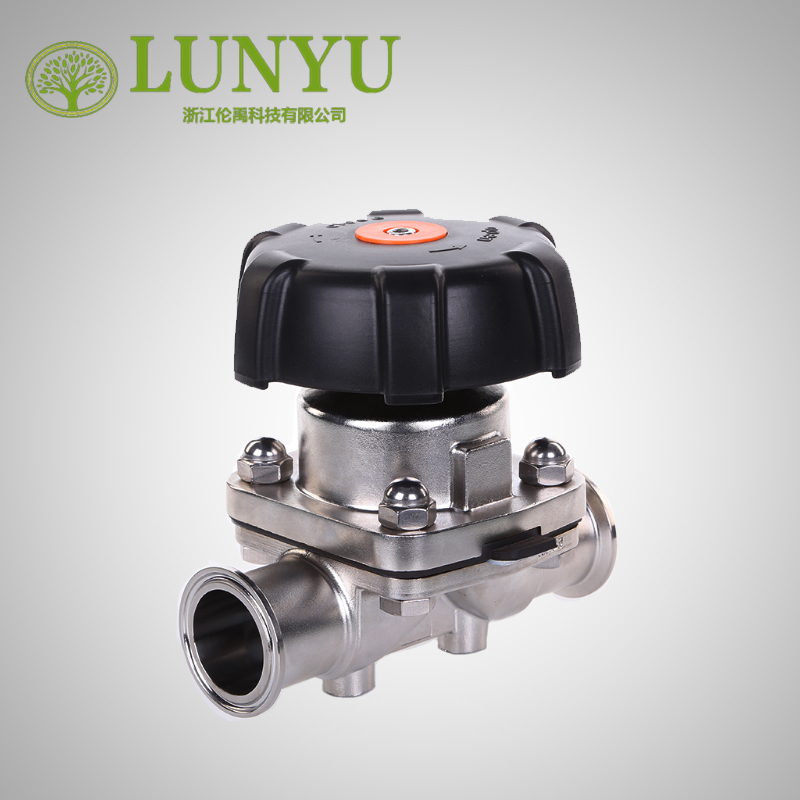

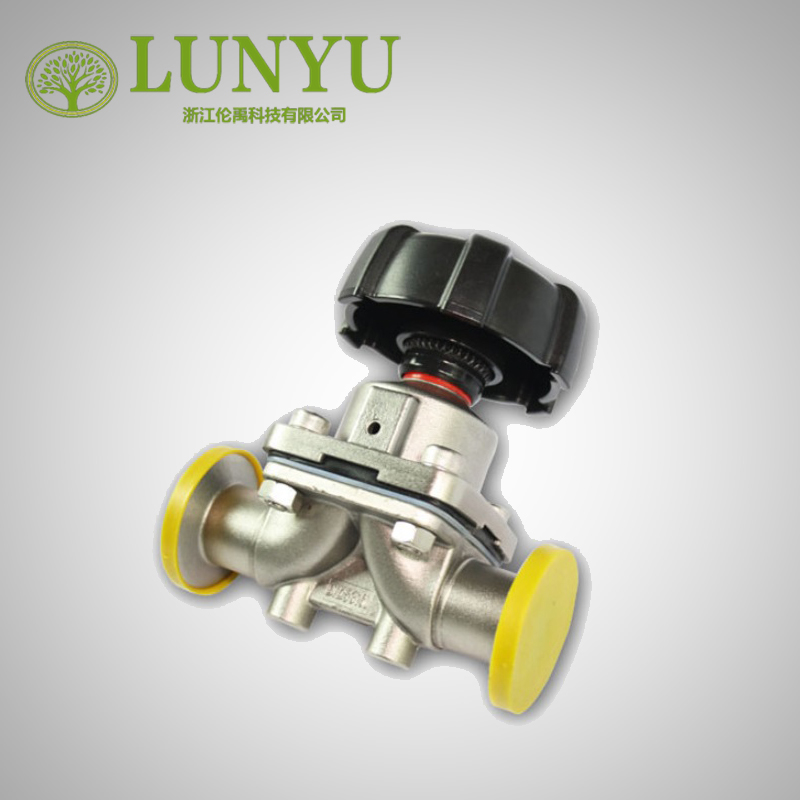

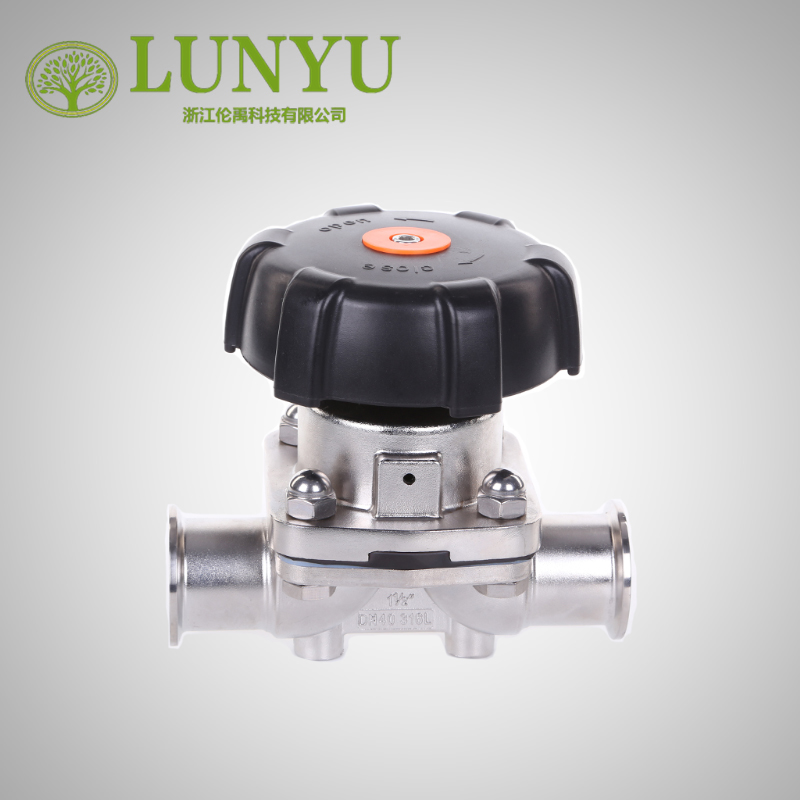

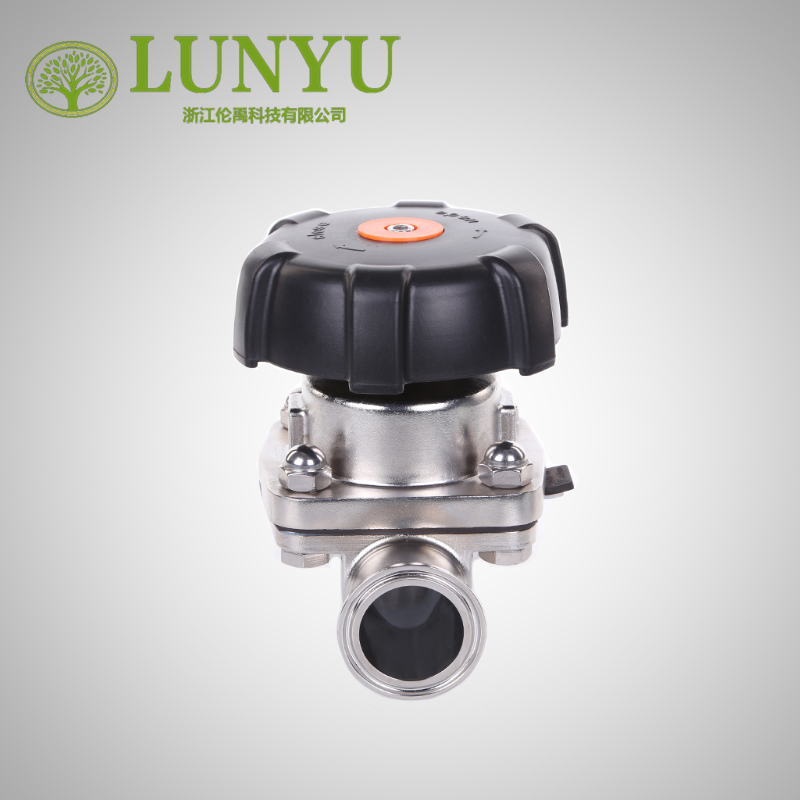

Sanitary Diaphragm Valve for Pharmacy Industry
Body Configuration: 2-ways
Connection: Clamp×Clamp
Material: 316L Stainless Steel
Size: DN8-DN65/1/2"-2"/12.7mm-51mm
Diaphragm : EPDM+PTFE/EPDM
Inside Treatment: Ra≤0.375(SF4)
Typical Applications:
Pharmaceutical manufacturing
Bioprocessing
Cosmetic
Brewery Service
Food and Beverage
Semiconductor
High Purity Chemicals
As a manufacturer, we can produce according to customer's requirement.
Sanitary Diaphragm Valve for Pharmacy Industry
Body Configuration: 2-ways
Connection: Clamp×Clamp
Material: 316L Stainless Steel
Size: DN8-DN65/1/2"-2"/12.7mm-51mm
Diaphragm : EPDM+PTFE/EPDM
Inside Treatment: Ra≤0.375(SF4)
Typical Applications:
Pharmaceutical manufacturing
Bioprocessing
Cosmetic
Brewery Service
Food and Beverage
Semiconductor
High Purity Chemicals
As a manufacturer, we can produce according to customer's requirement.
Technical Data | |||
Material | Body Of Valve | Investment Casting 316L(EN1.4409 CF3M) | Can provide material inspection report |
Sealing Material | Standard | EPDM+PTFE | Adopt sealing material with all the seal material the FDA 117.2600 |
Option | EPDM | ||
Pressure | Pressure of work | 0-10 bar | |
Control air pressure | 5-8 bar | ||
Temperature | Working temperature | EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) | |
Sterilization temperature | 150ºC(Max 20min) | ||
Surface Teatment | Inside surface treatment | Ra≦0.375µm (SF4) | |
Outside surface treatment | Sand blasting / Ra≦0.5µm (SF1) Can be chosen | ||
Connection | Diameter Standard | DIN, 3A, ASME/BPE, ISO/IDF, BS/RJT, SMS,etc | |
Connection mode: | Clamp end (Butt-weld can be chosen) | ||
Control Function | Manually Operated | ||
Pneumatic Actuator Control (Normally Close, Normally Open, Double Action) | |||
Body Shape | Staight Type (T type, U type, L type, Multi-way )Can be chosen |
Technical Data | |||
Material | Body Of Valve | Investment Casting 316L(EN1.4409 CF3M) | Can provide material inspection report |
Sealing Material | Standard | EPDM+PTFE | Adopt sealing material with all the seal material the FDA 117.2600 |
Option | EPDM | ||
Pressure | Pressure of work | 0-10 bar | |
Control air pressure | 5-8 bar | ||
Temperature | Working temperature | EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) | |
Sterilization temperature | 150ºC(Max 20min) | ||
Surface Teatment | Inside surface treatment | Ra≦0.375µm (SF4) | |
Outside surface treatment | Sand blasting / Ra≦0.5µm (SF1) Can be chosen | ||
Connection | Diameter Standard | DIN, 3A, ASME/BPE, ISO/IDF, BS/RJT, SMS,etc | |
Connection mode: | Clamp end (Butt-weld can be chosen) | ||
Control Function | Manually Operated | ||
Pneumatic Actuator Control (Normally Close, Normally Open, Double Action) | |||
Body Shape | Staight Type (T type, U type, L type, Multi-way )Can be chosen |
